What Is a Fuel Tank Sending Unit Float and Why It’s Important
Understanding your car’s fuel tank sending unit float is essential if you’ve ever dealt with a fuel gauge that seems to have a mind of its own. The sending unit float is part of the system that measures how much fuel is left in your tank and communicates that information to your dashboard gauge. It’s a small but crucial component that ensures you’re never guessing how far you can go before running out of gas.
This mechanism operates inside your fuel tank and moves with the fuel level. When it functions properly, you get an accurate reading; when it fails, your gauge might show “empty” even with a full tank—or worse, “full” when you’re almost out. Maintaining this small component can prevent unexpected breakdowns and expensive towing calls, something experts at Rescue & Towing see all too often.
United Towing Service Inc.
26170 Adams Ave, Murrieta, CA 92562, USA
How the Fuel Tank Sending Unit Works
The basic mechanism
The sending unit consists of three key parts: a float, a thin metal rod (called the arm), and a variable resistor. The float rises and falls with the fuel level, while the arm moves along the resistor, adjusting the electrical resistance that determines the fuel gauge reading on your dashboard.
Fuel 4
720 Tonnelle Ave, Jersey City, NJ 07307, USA
Electrical signal conversion
When the tank is full, the float is at its highest point, sending a signal to display “F” (full). As fuel is used and the float drops, resistance increases, changing the signal and lowering the gauge reading. This system is simple yet precise—until wear, corrosion, or debris interfere with the movement or electrical contact.
Why it fails over time
Corrosion, fuel varnish buildup, or damaged wiring are the most common causes of sending unit failure. Ethanol-based fuels can accelerate corrosion, while long-term exposure to moisture can make the float stick or sink. Once that happens, your readings become unreliable and can mislead you into an unexpected stall.
Common Fuel Gauge Problems Caused by a Faulty Float
1. The fuel gauge is stuck on full
This typically happens when the float arm gets jammed or the resistor fails in a low-resistance position. The gauge receives a continuous “full tank” signal even when the tank is nearly empty.
2. The gauge always reads empty
If the float becomes detached or sinks due to wear, the system thinks the tank is empty. This is especially common in older vehicles where the float’s buoyancy has deteriorated.
3. Fluctuating or inaccurate readings
When the float arm or resistor has intermittent contact, your gauge needle may jump between readings. Loose wiring or internal wear can also cause erratic behavior. Many drivers report this issue after hitting bumps or driving on uneven roads.
Understanding these symptoms can help you decide whether the problem lies in the sending unit or elsewhere in the electrical system.
Real-Life Example: When a Faulty Float Stranded a Driver
Jason, a long-haul driver from Texas, ignored his inconsistent fuel gauge for months. One night, his gauge showed half a tank as he cruised down a rural highway—but 20 miles later, his engine sputtered to a stop. The culprit? A stuck sending unit float that hadn’t moved in weeks. After a tow from Rescue & Towing, a simple part replacement solved the issue, saving him from a much more dangerous breakdown down the line.
This kind of incident happens more often than most drivers realize. A faulty sending unit might seem minor, but it can lead to serious inconvenience if not addressed early.
How to Diagnose Fuel Tank Sending Unit Float Issues
Step 1: Check the fuse and wiring
Before assuming the sending unit is at fault, inspect the fuse and wiring connected to your fuel gauge circuit. A blown fuse or corroded connector can mimic float failure.
Step 2: Perform a gauge test
Many vehicles allow you to run a dashboard diagnostic. If the gauge needle moves during the test, the problem is likely in the sending unit rather than the gauge itself.
Step 3: Inspect the fuel tank

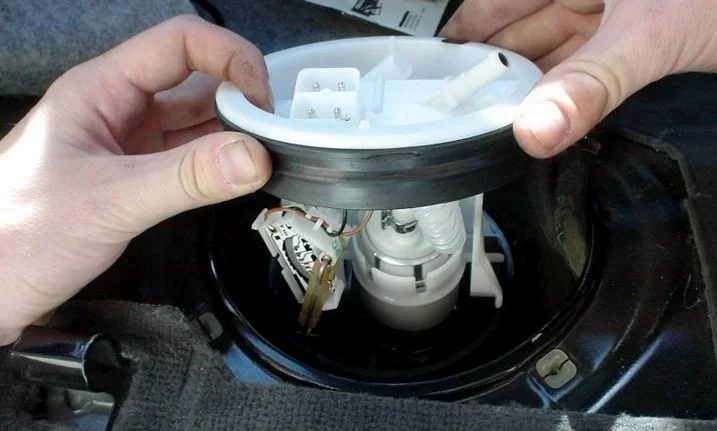

If you suspect float failure, the sending unit must be removed for inspection. Look for signs of corrosion, physical damage, or a float that no longer moves freely. Replacement units are widely available and relatively inexpensive compared to full fuel system repairs.
At this stage, consulting a professional mechanic—or the experienced technicians at Rescue & Towing—can ensure an accurate diagnosis before parts are replaced.
Tips for Maintaining Your Car’s Fuel System
Use quality fuel
Cheap or contaminated gasoline often contains impurities that can clog or damage your fuel system, including the sending unit. Stick to trusted fuel stations and avoid topping off your tank after the pump clicks off.
Keep your tank clean
Over time, sediment builds up at the bottom of the tank. Running your car on low fuel increases the risk of that debris being pulled into the pump or float mechanism. Try to refuel before reaching the last quarter of the tank.
Regular inspections
During routine maintenance, ask your mechanic to check the fuel lines, tank, and sensor connections. Early detection of corrosion or wear can prevent costly repairs later.
Expert Recommendations from Rescue & Towing
Professionals at Rescue & Towing stress that understanding your car’s fuel tank sending unit float is not just about technical knowledge—it’s about prevention. By paying attention to early warning signs and addressing electrical or mechanical issues promptly, drivers can avoid unexpected breakdowns and ensure a longer life for their vehicle’s fuel system.
For those experiencing gauge inconsistencies or float-related issues, Rescue & Towing offers diagnostic assistance and repair guidance, helping drivers get back on the road safely. Their technicians often recommend keeping a maintenance log and monitoring your fuel consumption patterns as part of responsible car ownership.
When it comes to reliable fuel readings and smooth driving, your sending unit float plays a bigger role than most realize. Taking the time to maintain it properly ensures both peace of mind and safety on every trip.
