Understanding Your Car's Electrical System
Your car's electrical system is crucial for the operation of almost all its components. From powering the engine to operating lights, wipers, and the sound system, the electrical system ensures your car functions properly. However, like any complex system, it is susceptible to malfunctions. Troubleshooting car electrical problems can seem overwhelming, but with the right approach and knowledge, you can fix many issues yourself.
Firestone Complete Auto Care
1933 N Placentia Ave, Fullerton, CA 92831, USA
What Makes Up a Car’s Electrical System?
The main components of a car's electrical system include the battery, alternator, starter motor, fuse box, and wiring. Each part plays a critical role in ensuring the system works smoothly. The battery stores electrical energy, the alternator charges it, and the starter motor uses it to start the engine. The fuse box protects against electrical overloads, and the wiring distributes power to various parts of the car. Understanding how these components interact can help you diagnose issues when something goes wrong.
Complete Auto Service of Ann Arbor
2890 Jackson Ave, Ann Arbor, MI 48103, USA
Common Electrical Problems in Cars
Before you start troubleshooting, it’s important to know the most common electrical problems that could occur in your car. Let’s look at some of these issues and their symptoms:
1. Dead Battery
A dead battery is one of the most common electrical problems drivers face. Symptoms include the car not starting or dim lights when you try to start the engine. A battery can die due to old age, a faulty alternator, or leaving lights on overnight.
To check the battery, inspect its terminals for corrosion. If you find any, clean them carefully with a mixture of baking soda and water. If the battery is over three years old or showing signs of wear, it might be time for a replacement.
2. Alternator Failure
The alternator keeps the battery charged and powers electrical components while the engine runs. If the alternator fails, your car’s battery will drain, and the electrical components may stop working. A failed alternator can cause the car to stall or result in dim lights.
To test the alternator, you can use a multimeter to measure the voltage across the battery terminals. If the voltage is lower than 12.5 volts with the engine off, or over 14.5 volts with the engine running, the alternator may be faulty and need replacement.
3. Blown Fuses
Fuses protect your car’s electrical system from overloads. If a fuse blows, it can prevent certain electrical components from working, such as lights, radio, or power windows. When a fuse blows, you’ll need to replace it with one of the same amperage rating.
To find a blown fuse, locate the fuse box, usually under the dashboard or in the engine bay. Check the fuse diagram in your car’s manual and identify the fuse for the component that isn’t working. If the fuse appears burned out, replace it and test the system again.
How to Diagnose and Fix Electrical Issues in Your Car
Diagnosing electrical problems in your car requires some basic tools and knowledge. Here's how you can approach troubleshooting step-by-step:
Step 1: Check for Obvious Signs of Damage
Start by inspecting visible components like the battery, alternator, and wiring. Look for any signs of corrosion, loose connections, or wear. Damaged or frayed wires can cause short circuits or prevent proper power distribution, leading to electrical failures. If you notice any issues, replace the damaged parts or tighten loose connections.
Step 2: Test the Battery

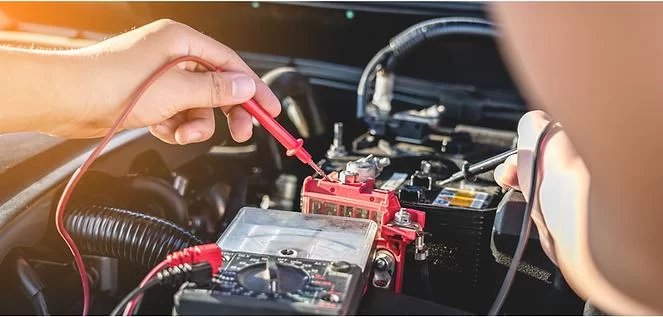

If your car is having trouble starting, test the battery first. Use a multimeter to check the battery’s voltage. If the voltage is low, try jump-starting the car. If it starts, the battery is likely the issue. If the car doesn't start even after a jump-start, the issue might lie elsewhere.
Step 3: Inspect the Alternator
Next, check the alternator. Use the multimeter again to measure the voltage across the battery terminals. If the voltage is not within the correct range, the alternator may need to be replaced. You can also listen for strange noises coming from the alternator while the engine is running, which could indicate a failing part.
Step 4: Check Fuses and Relays
Blown fuses and faulty relays are common culprits for electrical issues. Always replace blown fuses with the correct amperage rating. If a relay fails, you might need to replace it, as they control the flow of electricity to various components like lights or the fuel pump.
Step 5: Test the Wiring and Connections
Finally, check the wiring for any visible damage. Loose or corroded connections can disrupt the flow of electricity and cause problems with various components. Tighten loose connections, clean off corrosion, and replace damaged wires if necessary.
When to Seek Professional Help
Some electrical problems may be more complex than others. If you're unable to diagnose or fix the issue yourself, or if you're unsure about the problem, it’s best to consult a professional mechanic. Electrical systems are intricate, and a skilled mechanic will have the necessary tools and expertise to diagnose and repair the issue safely.
One of the key reasons people turn to professionals is for diagnosing electrical gremlins that aren't easy to spot. In some cases, the issue might be something subtle, like a faulty sensor or a problem with the car's computer system. Mechanics can also test more advanced components like the ECU (Engine Control Unit) that you may not have access to.
Real-Life Example
Imagine driving down the highway, and suddenly, your headlights flicker and go out. You try to turn on the interior lights, but they won’t come on either. This was exactly the situation a car owner named James faced when he noticed his car’s electrical system acting up. After a quick inspection, he discovered a blown fuse responsible for the headlights and interior lights. A quick fix, and he was back on the road!
As this example shows, troubleshooting car electrical systems doesn’t always require expert skills. With a little know-how and some basic tools, you can fix many electrical issues on your own. However, always be cautious and know when it’s time to call in a professional if the problem is too complex or dangerous to handle on your own.
