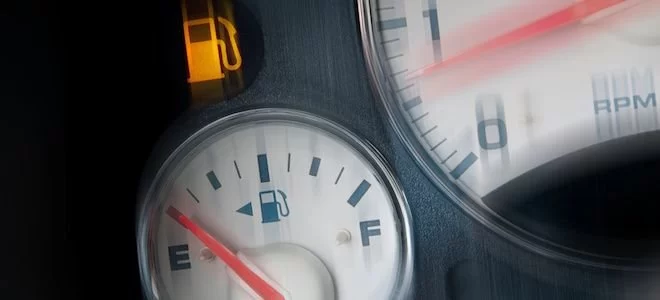

1. Understanding How Fuel Gauges Work
Fuel gauges are essential components in any vehicle, providing critical information about how much fuel is in your tank. The fuel gauge operates using an electronic or mechanical system, involving sensors, resistors, and the vehicle's electrical system. Understanding how your fuel gauge works is the first step in troubleshooting issues, as this knowledge will help you pinpoint where the malfunction might occur.
The basic system consists of a fuel sending unit, which measures the level of fuel in the tank and sends the information to the fuel gauge on the dashboard. If the fuel gauge is giving inaccurate readings, one of the components in this system might be faulty. The problem can stem from a simple wiring issue to a more complex mechanical or electrical failure. Understanding how these components work together will help you identify the root cause of the malfunction.
Firestone Complete Auto Care
1933 N Placentia Ave, Fullerton, CA 92831, USA
2. Common Causes of Fuel Gauge Issues
Fuel gauge problems can arise from several factors, ranging from electrical malfunctions to mechanical failures. Some of the most common causes include:
- Faulty Fuel Sending Unit: The sending unit, located in the fuel tank, may fail, leading to incorrect readings on the gauge.
- Broken Wiring: Damaged or corroded wires can disrupt the signal between the sending unit and the gauge, causing the reading to be inaccurate.
- Blown Fuse: A blown fuse in the fuel gauge circuit can stop the gauge from functioning entirely.
- Faulty Gauge: Sometimes, the issue lies directly with the gauge itself, especially if it's damaged or worn out.
- Corrosion: Corrosion on the electrical connectors can also lead to communication breakdowns, resulting in erratic fuel gauge readings.
Identifying the exact cause is crucial to determining whether you need to repair or replace the components involved. In many cases, simple troubleshooting can help pinpoint the issue before it escalates into a more costly repair.
Complete Auto Service of Ann Arbor
2890 Jackson Ave, Ann Arbor, MI 48103, USA
3. Diagnosing the Problem with Your Fuel Gauge
When your fuel gauge isn’t working properly, the first thing you should do is diagnose the problem. Here are the steps to follow:
- Check the Fuse: The first step is to check the fuse related to the fuel gauge. If it's blown, replace it and see if the gauge starts working again.
- Inspect the Wiring: Examine the wiring for any visible damage or corrosion. Pay special attention to the connections near the fuel tank and the dashboard.
- Test the Sending Unit: Using a multimeter, test the sending unit for continuity. If the sending unit is faulty, it may need to be replaced.
- Check the Gauge: If the fuse and wiring are intact, the problem may lie within the gauge itself. You can test the gauge by manually applying voltage to the circuit.
If you're unable to pinpoint the issue after completing these basic tests, it might be best to take your vehicle to a professional mechanic for further diagnosis.
4. Testing the Fuel Sending Unit
The fuel sending unit is often the culprit when your fuel gauge malfunctions. Testing it is a straightforward process that requires a multimeter to check for continuity. Here's how you can perform this test:
- Disconnect the wiring from the sending unit.
- Set your multimeter to the resistance (Ohms) setting.
- Place one probe on the sending unit's terminal and the other on the ground.
- If the reading on the multimeter is not consistent with the manufacturer's specifications, the sending unit is likely faulty and needs to be replaced.
It’s important to note that the fuel sending unit is located inside the fuel tank, so replacing it may require removing the tank, which can be a more involved and costly repair.
5. Fixing Wiring Issues
Wiring issues are another common cause of fuel gauge malfunctions. These problems can stem from worn-out wires, corrosion, or poor connections. If you've already checked the fuse and sending unit and are still experiencing problems, it's time to inspect the wiring system:
- Inspect the Wires: Look for any visible damage or wear on the wires leading to the fuel gauge and sending unit.
- Clean the Connectors: If you notice any corrosion, clean the electrical connectors with a wire brush or contact cleaner.
- Test for Continuity: Using a multimeter, test for continuity between the wires and connections. If there’s no continuity, the wire may need to be replaced.
If the wiring seems intact but the problem persists, it’s worth considering that the issue could lie within the electrical system, which may require professional inspection.
6. When to Replace the Fuel Gauge
If all the other components seem to be functioning correctly and the fuel gauge is still not working, it may be time to replace the gauge itself. A faulty gauge can lead to inaccurate readings, and in some cases, a completely dead gauge. Replacing a fuel gauge typically involves:
- Disconnecting the battery and removing the dashboard panel.
- Removing the faulty gauge and replacing it with a new one.
- Reconnecting the wiring and testing the new gauge for proper function.
While replacing a fuel gauge can be a relatively simple task for experienced DIYers, it’s often best left to a professional mechanic to ensure the installation is done properly.
7. Troubleshooting Tips from Experts
Here are some expert tips to help you troubleshoot and fix your fuel gauge problems more effectively:
- Be patient: Troubleshooting electrical systems can take time. Don't rush the process; carefully check each component before moving on.
- Use the right tools: A multimeter is essential for testing continuity and voltage. Make sure you have one on hand before starting your repairs.
- Consult a professional: If you're unsure about any part of the troubleshooting process, don’t hesitate to consult a professional mechanic.
Remember, addressing fuel gauge issues early on can prevent you from running out of fuel unexpectedly or misjudging your fuel level, potentially saving you from a roadside emergency.
