How to Fix an Electrical Short in Your Car: A Comprehensive Guide

There I was, sitting in my car one afternoon, trying to turn on the radio when I noticed something odd: nothing was happening. My car’s electrical system had completely failed, leaving me stranded in the middle of nowhere with no clue what was going on. That was the moment I learned the hard way how tricky electrical issues in cars can be, especially when it involves an electrical short. If you’ve ever faced this problem, you know how frustrating it can be to try and figure out what went wrong. But over the years, I’ve learned a lot about troubleshooting electrical shorts, and today, I want to share with you everything I know about fixing an electrical short in your car.

An electrical short can be one of the most confusing issues to diagnose because it can cause a range of problems, from malfunctioning lights to a completely dead vehicle. But once you understand how electrical systems work in cars and what to look for, it becomes much easier to pinpoint the problem and fix it. Whether you’re an experienced DIYer or just someone looking to save money on repairs, this guide will take you through everything you need to know to tackle an electrical short in your car.

pick your part help yourself
Pick Your Part - Help Yourself

1232 Blinn Ave, Wilmington, CA 90744, USA

1. What Exactly is an Electrical Short in a Car?

Before we dive into fixing an electrical short, it’s important to understand what an electrical short actually is. An electrical short happens when a live wire makes contact with a grounded surface, causing a surge of electricity to flow through the circuit. This can lead to blown fuses, malfunctioning components, or even damage to your car’s battery and alternator. An electrical short can also cause sparks, and in extreme cases, it may even result in a fire.

In my case, I first noticed an issue when I tried to use my car's power windows, and they didn’t respond. I didn’t think much of it at first, but after a few more odd electrical glitches, I realized something deeper was wrong. At that point, I started researching common causes of electrical shorts and learned that they could be the result of a damaged wire, a blown fuse, or even a faulty relay. It’s crucial to identify the source of the short to effectively fix it and prevent further damage.

lkq pick your part - greer greer sc
Pick Your Part - Greer

13054 E Wade Hampton Blvd, Greer, SC 29651, USA

2. Symptoms of an Electrical Short

Electrical shorts in cars can manifest in several different ways, depending on which part of the electrical system is affected. Here are some of the common symptoms that I experienced and which could indicate an electrical short:

Fuses Keep Blowing: If you’ve noticed that your car’s fuses keep blowing, it’s a strong indication that there’s an electrical short somewhere in the system. I remember having to replace my car’s fuse every couple of weeks, only to find that the new fuse would blow again shortly afterward.
Malfunctioning Electrical Components: An electrical short can cause various components like headlights, windshield wipers, and even your car’s radio to stop working. I once had issues with my car’s dashboard lights flickering on and off, which turned out to be a sign of an electrical short.
Car Won’t Start: Sometimes, an electrical short can completely drain your battery or interfere with your car’s starting system. If you’ve tried to start your car and it doesn’t respond at all, there’s a chance an electrical short is to blame.
Burning Smell or Sparks: A burning smell or visible sparks coming from your car’s electrical system is a serious warning sign. If you notice this, it’s essential to stop driving immediately and investigate the issue. This was the first sign I got that something was seriously wrong with my car’s electrical system.

3. Common Causes of Electrical Shorts in Cars

Now that you know what an electrical short is and how it can present itself, it’s time to take a look at the common causes. In my own experience, I’ve run into a few of these issues, and each one had its own distinct solution.

Damaged Wiring: One of the most common causes of an electrical short is damaged wiring. Over time, wires can become frayed, cracked, or exposed due to wear and tear or environmental factors like heat and moisture. I once had a wire underneath my dashboard rub against a metal part of the car, causing a short that kept blowing my fuses.
Corroded Connections: Corrosion on electrical terminals can lead to shorts by causing poor connections between wires and components. I’ve found that corrosion often builds up in areas exposed to moisture, such as under the hood or in the fuse box.
Loose or Faulty Fuses: A blown or faulty fuse can sometimes appear as an electrical short, even though it’s technically a separate issue. I’ve had instances where a fuse would blow but wasn’t replaced properly, causing the circuit to malfunction and resulting in a short.
Faulty Alternator: The alternator charges your car’s battery, and if it’s malfunctioning, it can cause electrical issues. In my case, the alternator wasn’t supplying the correct voltage to the system, leading to sporadic electrical problems. A malfunctioning alternator can lead to electrical shorts and even completely drain your battery.
Aftermarket Electronics: Adding new electrical components like stereos, lights, or other accessories to your car can sometimes cause electrical shorts if the installation isn’t done properly. I learned the hard way after installing a new radio, which was connected to the wrong fuse, causing an electrical short that shut down several parts of my electrical system.

4. How to Diagnose an Electrical Short

Diagnosing an electrical short can seem like a daunting task, but it’s manageable once you know what to look for. Here’s the process I follow when trying to track down a short in my car’s electrical system:

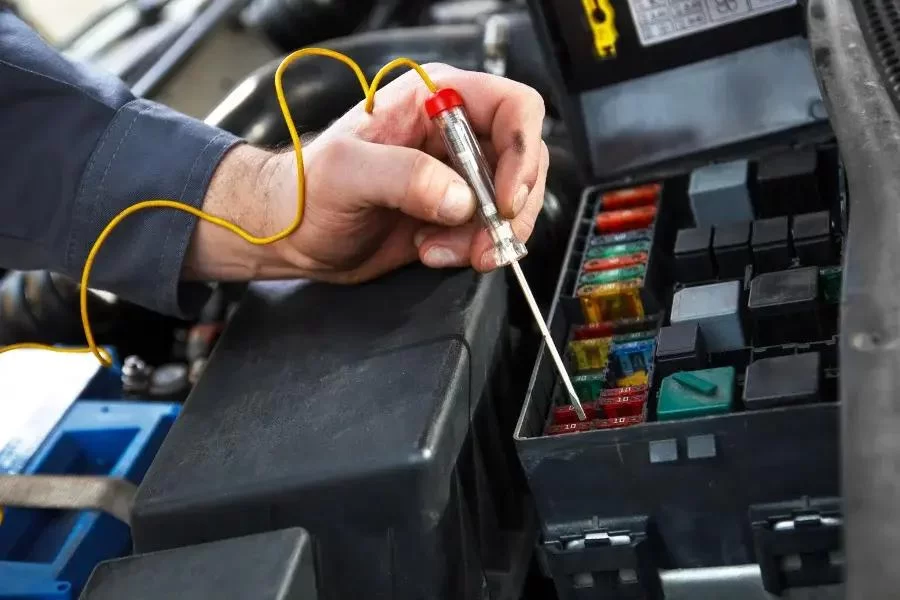

Step 1: Start with the Basics: First, I check the fuses to see if any have blown. I’ve learned that a blown fuse is often the first sign of an electrical short, so replacing the fuse is a good starting point. If the new fuse blows immediately, then I know I have an underlying short to track down.
Step 2: Inspect the Wiring: I always make sure to inspect the wiring in the affected areas. Look for any visible signs of damage like frayed wires, melted insulation, or exposed metal. I’ve found that problems often occur in places where wires rub against metal parts, so I focus on those spots first.
Step 3: Check for Loose Connections: Loose or corroded connections can cause electrical shorts as well. I take the time to disconnect and reconnect any visible electrical connectors, making sure they’re clean and free of corrosion. In my experience, this simple step can often resolve the issue.
Step 4: Use a Multimeter: A multimeter is a valuable tool for diagnosing electrical problems in cars. I use it to measure the continuity of circuits and check for voltage inconsistencies that could point to a short. This step has helped me identify the source of many electrical issues.
Step 5: Test the Affected Components: Once I’ve identified potential problem areas, I test each electrical component that’s affected to see if it works. If not, I trace the wires back to their source and look for issues like corrosion, broken connections, or damaged fuses.

5. Fixing the Electrical Short

Once I’ve pinpointed the source of the electrical short, fixing it is often a matter of replacing or repairing the damaged components. Here are the steps I typically follow:

Repair Damaged Wires: If I find a damaged wire, I either replace it entirely or repair it using electrical tape or wire connectors. In some cases, I may have to strip back the insulation and solder the wire if the damage is extensive.
Replace Blown Fuses: If the issue was caused by a blown fuse, I simply replace it with a new one of the correct rating. I’ve learned that using the wrong fuse can cause more problems, so I always double-check the fuse rating before installing it.
Clean Corroded Connections: For corroded terminals or connectors, I clean them thoroughly with a wire brush and apply dielectric grease to help prevent future corrosion. I’ve found that keeping these connections clean is crucial to maintaining the health of the electrical system.
Test the System: After making repairs, I always test the electrical system to ensure everything works correctly. I check the affected components like lights, radio, and power windows to make sure they’re functioning properly.

Fixing an electrical short in your car might seem intimidating, but with the right tools, patience, and knowledge, it’s something anyone can tackle. I hope that by following these steps, you’ll be able to solve your electrical issues and get your car back on the road without needing to call in a professional. If you find that you’re unable to fix the issue yourself or need help with towing, feel free to check out Rescue & Towing for reliable roadside assistance and towing services.
